C48625 UPGRADE

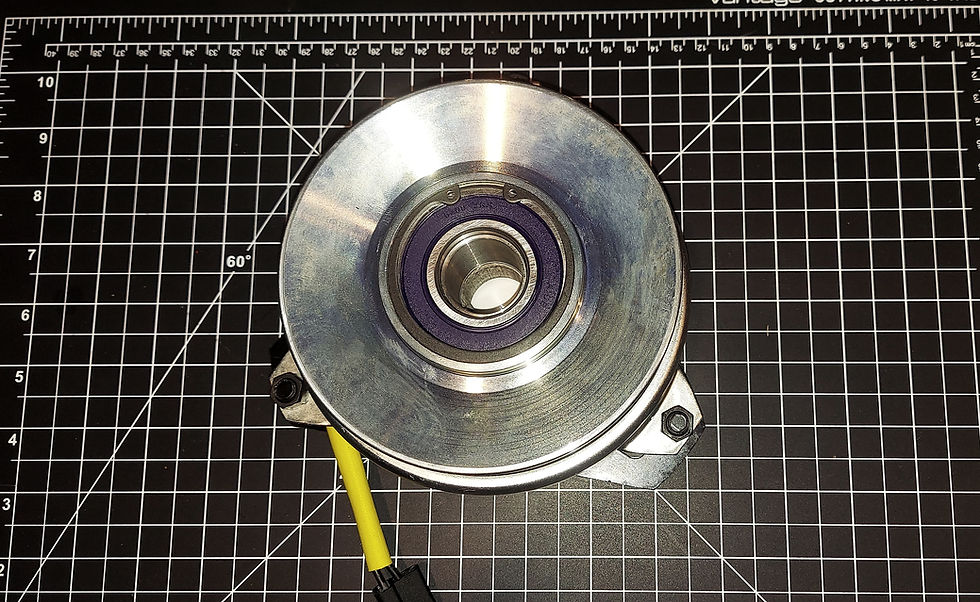

New HeavyDuty Electric PTO Clutch For 12, 14, 16 and 18 horse power Briggs And Stratton Vanguard Powered 3012, 3014, 3016, 3018, 4014, 4016, 4018, Odessy And Kohler "Magnum" Powered Massey Ferguson 200 and 300 GTX Series. As well as Magnum Powered 3010, 3012, 3014, 4014. All with 1 inch crank. Used to power mower decks, snow blowers, etc.
MAKE SURE you have an anti rotate bracket installed!

Machined Billet pulleys
Increased size of pulley bearing and it is high temp rated to improve bearing life. Not only is it oversized, but it is REPLACEABLE!
Multiple layers of Protection for Wires and connectors.
Strong and corrosion resistant Stainless Steel Rivets for long, strong, brake life
Coil engineered to run cooler for a longer life.
Replaces possible or works in place of part numbers- C48625, C33197, C47443, C31296, C32375, C46992, 5215-108, 255-585, 7-06295 and others.

OPTION- We recommend adding an inline fuse to protect the circuit.
OPTION- It is also a good idea to replace the PTO Switch at this time if there is any question as to its status or the cause of your PTO failure.
OPTION- To Add C31986 Diode Wire Assembly.   Diode wire kit for all electric pto clutches models tractors (3000-4000 Series). Located in the PTO wiring harness near the clutch plug connector. Often this wire is damaged and or fails, if the electric clutch bearings have failed causing the anti-rotation bracket and harness to be damaged. For both Onan and Briggs Vanguard equipped models.
MAKE SURE ANTI-ROTATION BRACKET IS INSTALLED!
OPTIONS TO ADD AT CHECK OUT
