Save TIME AND MONEY by ordering this kit we put together!
Mower Deck "REFRESH Kit: Right-hand Discharge Models RM38, RM44 inch, and RM 48 inch decks found on 3000 and 4000 series tractors.
If You Are Looking For A Master FULL RebuilId Complete kit click HERE.
RM38, RM44, RM48 inch cut RIGHT hand discharge & RM44GR Rear discharge Ingersoll mower decks. And Rear Decks For 3000-4000 Models. For all mower decks that fit the 3000/4000
series tractors and 3-point finish mowers.
This kit we put together will come with all the needed items to do a basic "REFRESH" on your RIGHT-hand or rear discharge or 3-point Ingersoll mowing deck listed above. We include upgraded hardware to mount blades
Included in this kit will be OEM parts and or Top Quality replacements and or upgrades for the following part numbers below:
(6) C28971 Bearings
(3) New Blades and mounting Hardware you select.
(3) 113-209 Bolt (Upgraded to grade 8 hardware)
(3) 192-21 Lock Washer (Upgraded to grade 8 hardware)
(1) Cross-deck pulley belt depending on your deck model
Choose deck model at checkout to get the correct parts.

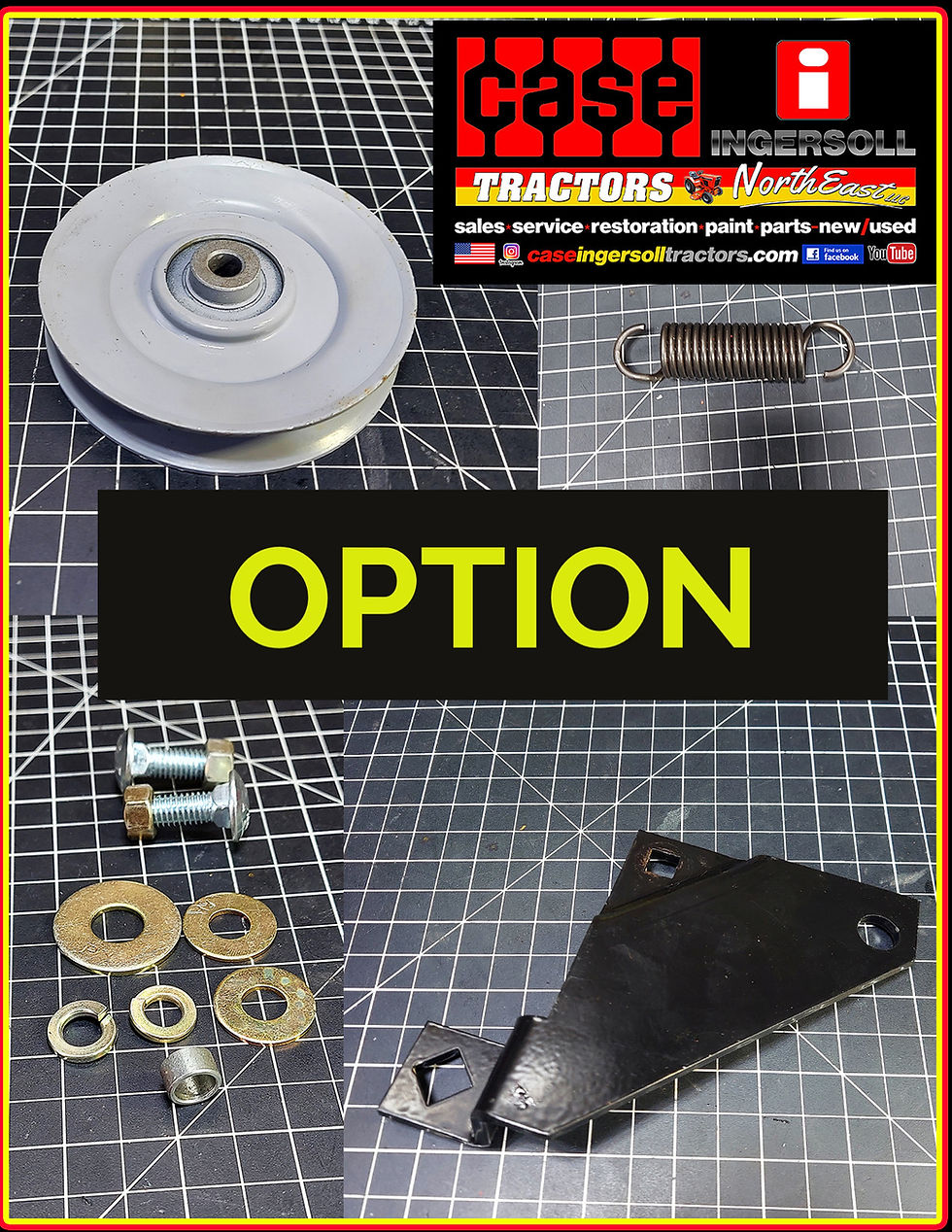

OPTION- To add an Idler bracket assembly kit. We highly recommend adding this as most are found to be worn if not replaced recently.
Idler System Rebuild Kit, which will include:
C12251 Idler Pulley
C31608 Idler Bracket
C14768 Pivot Bushing
C31606 Idler Spring (We have found a suitable aftermarket spring to replace this as the OEM spring has been on backorder for a long time)
111-371 Bolt
195-105 Washer
195-525 Washer
131-1181 Nut-Lock
111-366 Bolt
OPTION- To add Deck Wheels
NOTE- RM44 only Blades may be "mulch" blades as inventory runs out the mulching blades are the only option available. They work fine using them as normal mowing blades and some prefer to use them even without a mulching kit.
We also recommend ordering the correct new Drive PTO belt, you can find it under the "BELTS" in our store menu.
